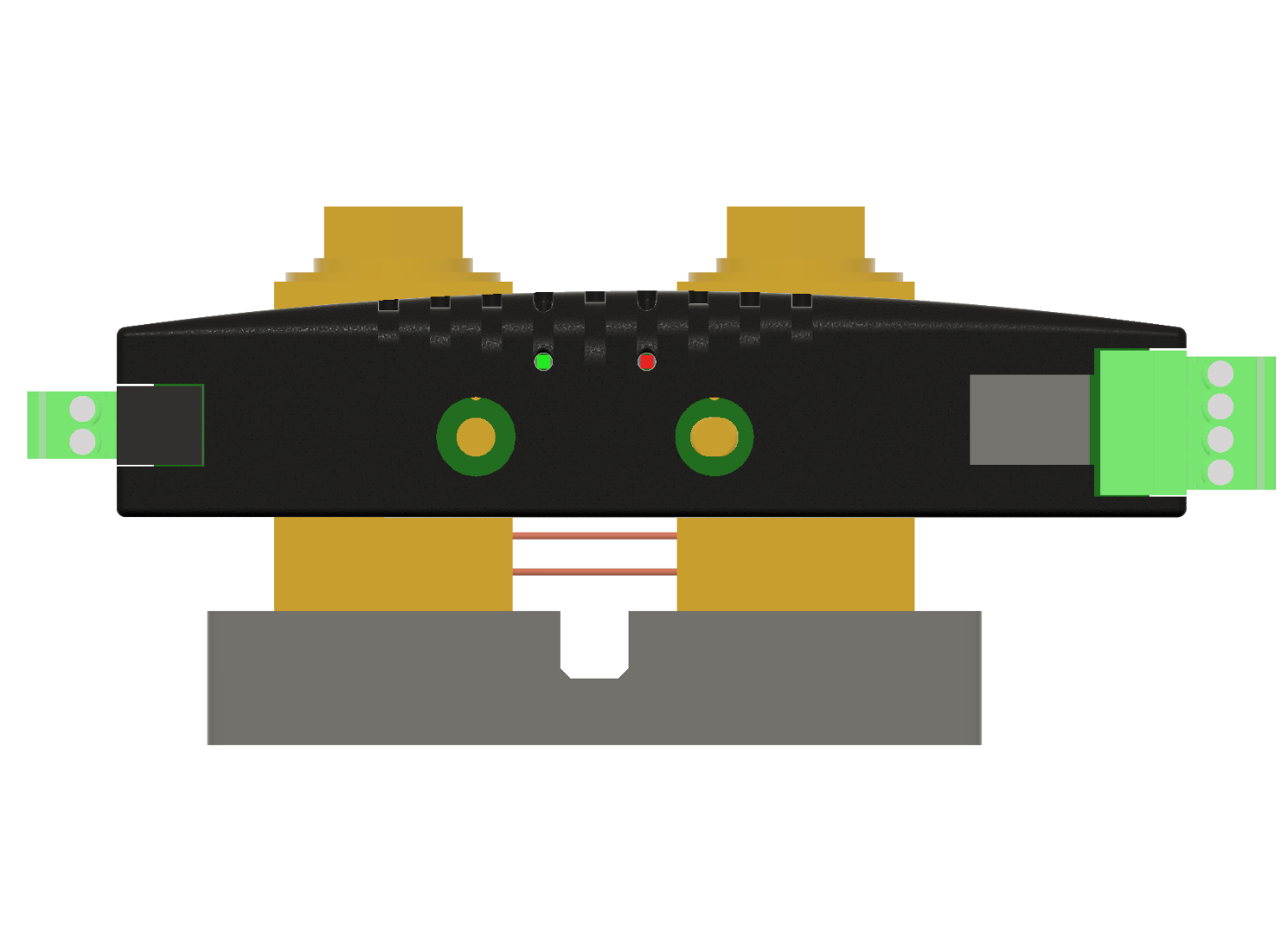

ShuntMon v2.3 1000A Sensor

Sale price Price $216.00 AUD Regular price Unit price  per

Shipping calculated at checkout.

Shunt-based precision current measurement module that accumulate current over time. Shuntmon is our second evolution replacing the Sendyne sensor.

1000A ShuntMon works with any of our WatchMon range.

Characteristics:

  • Current ± 1000 A peak (800 A continuous)
  • Maximum Voltage 650v DC

Features:

  • Turnkey solution for use in the field
  • Typically achieves ±1.0 % accuracy of current measurement
  • Resolves currents from 3 mA to 1000A
  • Low power consumption
  • Built-in calibration for current and voltage measurements
  • built in isolation for power and serial communication

1000A ShuntMon VIDEO

Instructions:

How to connect the Shuntmon2 to WatchMon supervisor

Understanding the WatchMon Hardware configuration SOC% settings

What comes in the box:

  • ShuntMon2
  • ShuntMon cable to connect the shunt to the WatchMon supervisor

Photos showing the ShuntMon connected to the WatchMon supervisor:

WatchMon + Expansion Board (din rail mount)

Can we use our own Shunt Block?
