Batrium

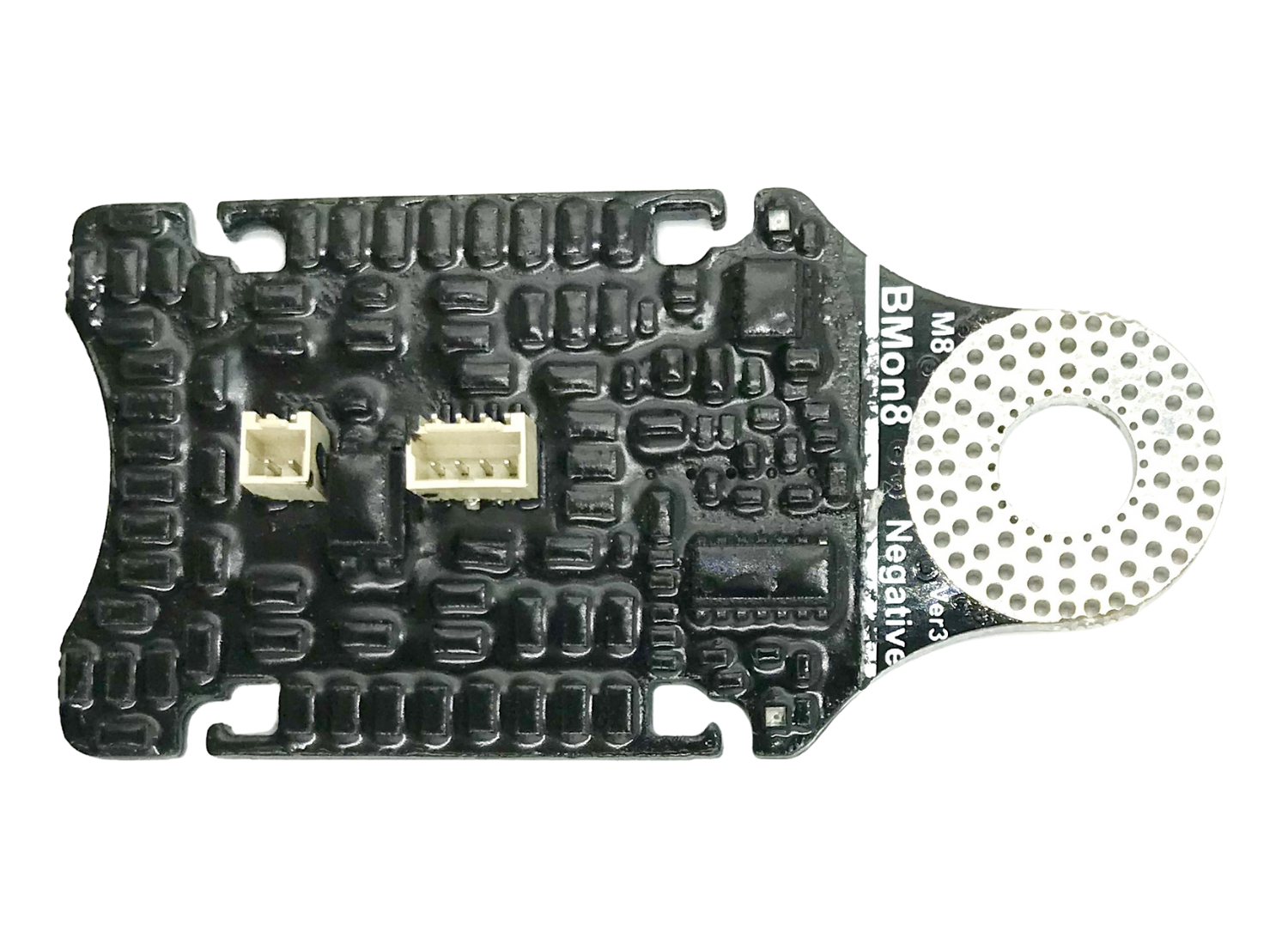

BlockMon M8 cell monitor

Regular price $17.60 AUD

Intelligent battery monitor systems used to maintain lithium batteries

  • Battery range 2.2V to 5.4V.
  • Bypass current 0A to 2A (typically 1A).
  • Over-temperature protection.
  • Over-voltage protection up to ±20V.
  • Noise immune opto-isolated.
  • Cell temperature and bypass load temperature measurements.
  • USB monitoring of live individual cell parameters and remote cell diagnostics.
  • Sealed in black thermally conductive epoxy (robust and safe).
  • Red and green LEDs for diagnostics and status.
  • All parameters fully remotely programmable and software is remote upgradeable.
More details are available in the datasheet

BMon and LMon Data Sheet Ver 1.1
Connecting BlockMons (Battery Chain)

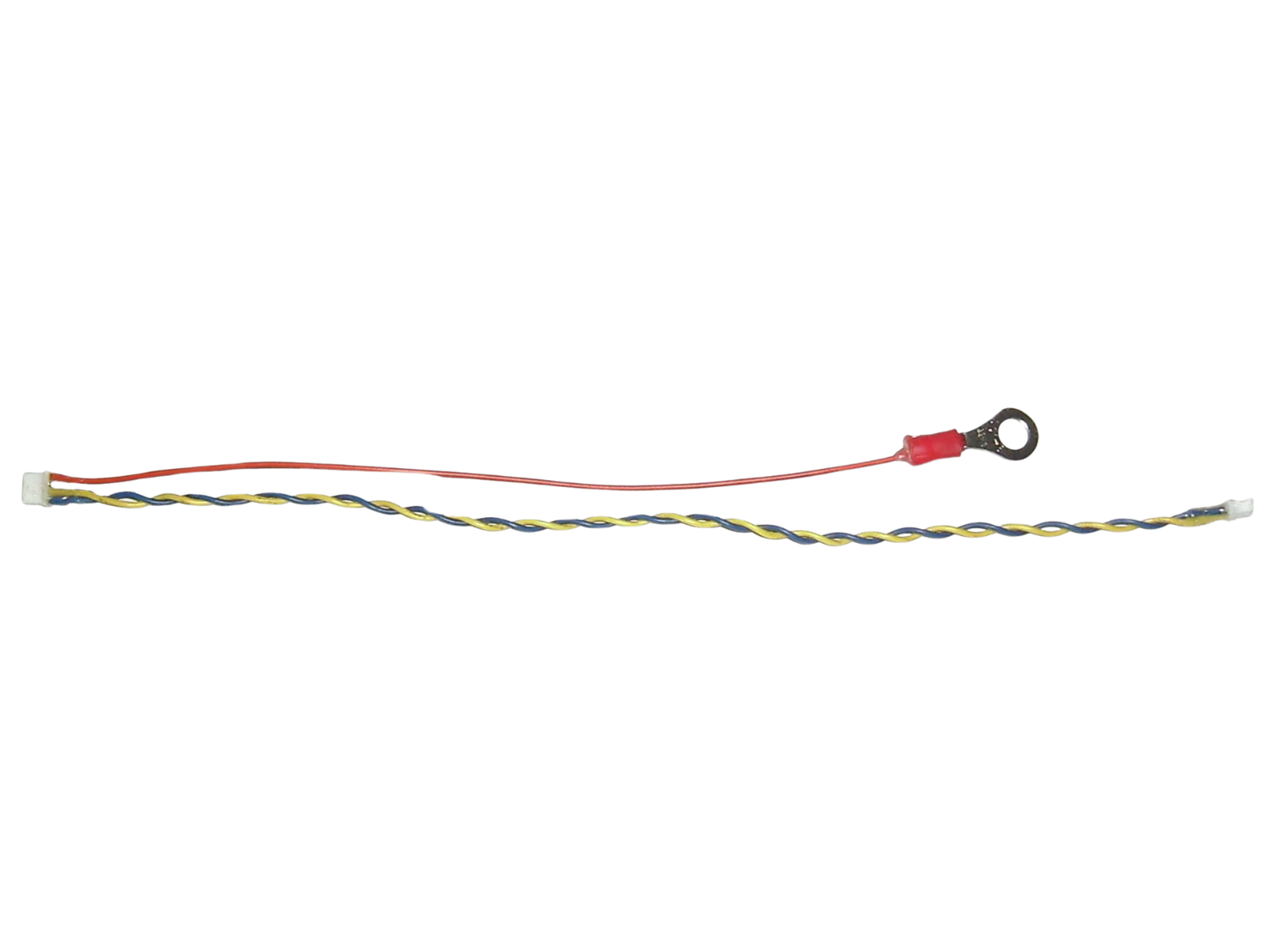

Includes cable, consider purchasing spare blockmon cables

Whilst available as individual components, it is recommended to order a "Starter Kit" and use this item for additional cell monitors.

Dimensions
