WatchMon toolkit (Release 1.0.25 - firmware 1.37)

WatchMon toolkit (Release 1.0.25 - firmware 1.37)

Download setup at WatchMonToolkitInstaller_1.0.25.msi

Includes both 1.0.25 and 1.0.24

New Features

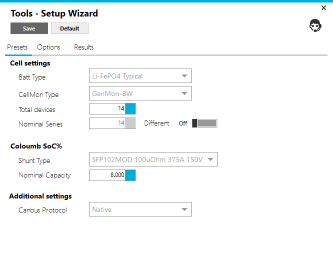

  • Wizard setup to auto populate all screens with hardware/control defaults settings
  • Cellmon bypass extra adjustment modes for low volt cutout, footer status icon when re-balancing. New method to check when cells are the same voltage for extended periods (1 min) and not require a shunt. Record recent time stamp events.
  • Voice Player - configurable telemetry oral speaker for key stats with alternative voices, rate and volume settings, handy when not able to look at the display whilst testing.



  • Snapshot report now includes extra scheduling options (4hr, 1hr, 15min, 5min), additional fields, also warns if not all the telemtry data has been collected
  • Include Eltek 2000HE/48 charger to canbus protocol integration
  • Main Chart now includes tooltip for cell volt, temperature and bypass amperes
  • Redirect Help/Support Icon's to primary website away from zendesk
  • Status footer icons to warn if connection version is a mismatch, and re-sequence to improve visibility
  • Expansion hardware includes WatchmonCMC template, contactor sensor status and analogue input reading.



  • Correctly round default targets for Control Critical, Charging and remote screens
  • Ensure system operating status is not in timeout when there is no shunt
  • Session History allow direct reference access via GO
  • Lifetime history reset all counters
  • Bypass tester to handle longer cell series network and report overall stats
  • Shunt setup - idle charge / discharge thresholds can be saved



Next release (software 1.0.26 - firmware 1.38)

Previous release (software 1.0.24 - firmware 1.36)

How to install the WatchMon Toolkit software

How to upgrade the Watchmon firmware
